Cutting System
- Cutting Width
- 550 mm
- Cutting Height
- 20-150 mm
- Lift Motor
- DC 80W x 2
HYBRID / RANGE-EXTENDED REMOTE MOWER
SH-550B Hybrid Range-Extended Remote Control Mower
Remote-controlled mower for slope vegetation, landscaping and difficult-access maintenance.
Compare the machine against your terrain, vegetation condition, required cutting width and working-area requirements before quotation.
Compare Remote Mowers →
- Cutting Width
- 550 mm
- Bare Machine Weight
- About 137 kg
- Cutting Height
- 20-150 mm
- Machine Size
- 910 x 930 x 560 mm
- Remote Control
- 2.4G
Technical Specifications
Machine & Dimensions
- Model
- SH-550B
- Machine Type
- Hybrid range-extended remote control mower
- Machine Size
- 910 x 930 x 560 mm
- Bare Machine Weight
- About 137 kg
- Track Width
- 150 mm
- Ground Contact Length
- 810 mm
- Travel Speed
- 0-4 km/h
- Source-Listed Climbing Angle
- 55 degrees under source test/reference conditions; not a guaranteed operating limit
Power System
- Engine Option
- Loncin 196CC; Loncin 224CC, Rato 225CC and Kohler 200CC options available by configuration
- Start Method
- Recoil / electric start
- Maximum Engine Speed
- 3600 r/min
- Oil Capacity
- 600 ml
- Fuel Consumption
- 0.7 L/h for Loncin 196CC; 0.8 L/h options available by configuration
- Fuel
- 1.3 L / 92# gasoline
- Electrical System
- DC 24V range-extended charging
- Generator
- Brushless 1500W
- Travel Motor
- 450W x 2 brushed / 500W x 2 brushless options available by configuration
Remote Control & Configuration
- Remote Control
- 2.4G
- Source-Listed Remote Distance
- 70-800 m; actual usable range depends on terrain, interference, battery condition and site conditions
- Remote Functions
- Start/stop, travel and turning, engine speed, cutting-height adjustment, cruise, lighting and emergency stop
- Remote-Control Safety
- Emergency stop and loss-of-signal protection are listed as standard; confirm the selected controller and configuration before shipment
- Control System
- Source workbook lists low-voltage functional control, high-power protection control and braking with the brushless controller configuration
- Work Light
- LED light listed in the source workbook
- Packaging Size
- 980 x 980 x 710 mm
- Packed Weight
- About 170 kg
- Configuration Note
- Final configuration and quotation should be confirmed according to working area, terrain, attachment needs and destination market.
MOWING CONDITIONS
Is the SH-550B right for your mowing conditions?
Terrain & Slope
Confirm the working slope, ground firmness, traction, moisture and uneven terrain. Do not select by a slope-test figure alone.
Vegetation Condition
Describe the grass, weeds and vegetation condition, including whether the site is routinely maintained. Confirm rough-vegetation requirements before quotation.
Cutting Width & Site Size
Match the 550 mm cutting width to access, site size, mowing frequency and maneuvering space.
Power & Working Pattern
Compare the hybrid / range-extended configuration against the intended working pattern. Confirm the final engine and electrical configuration before quotation.
Not ideal for buyers who need pure electric operation, snow clearing or transporter functions.
Typical Applications
Slope Mowing
For remote mowing work where slope angle, ground condition and traction need to be checked.
Vegetation Control
Supports routine grass and vegetation control on estates, farms and managed land.
Farm / Estate Maintenance
Suitable for property, farm and estate maintenance where remote mowing helps reduce manual work in difficult-access areas.
Rental / Professional Mowing
A practical option for rental fleets, contractors and professional vegetation-maintenance work where machine configuration is confirmed for the job.
What to confirm before quotation
- Intended application
- Working area / site size
- Slope and ground condition
- Grass / weed / brush condition
- Required cutting width
- Power / configuration preference
- Quantity
- Destination country / port
- Transport / loading requirements
- Attachment needs if applicable
Packing method, engine option and export quotation should be confirmed after working area, terrain, order quantity and destination market are checked.

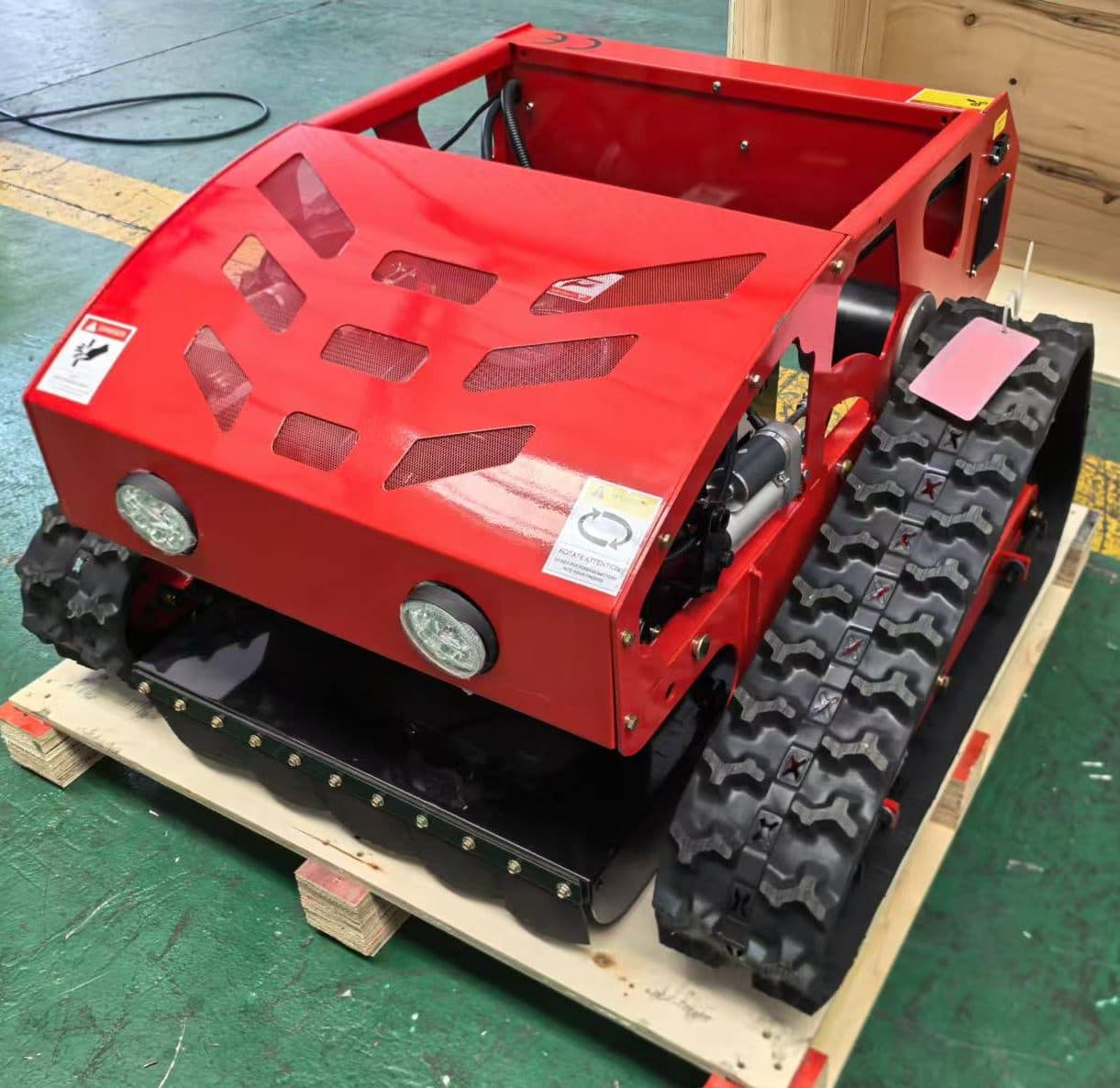

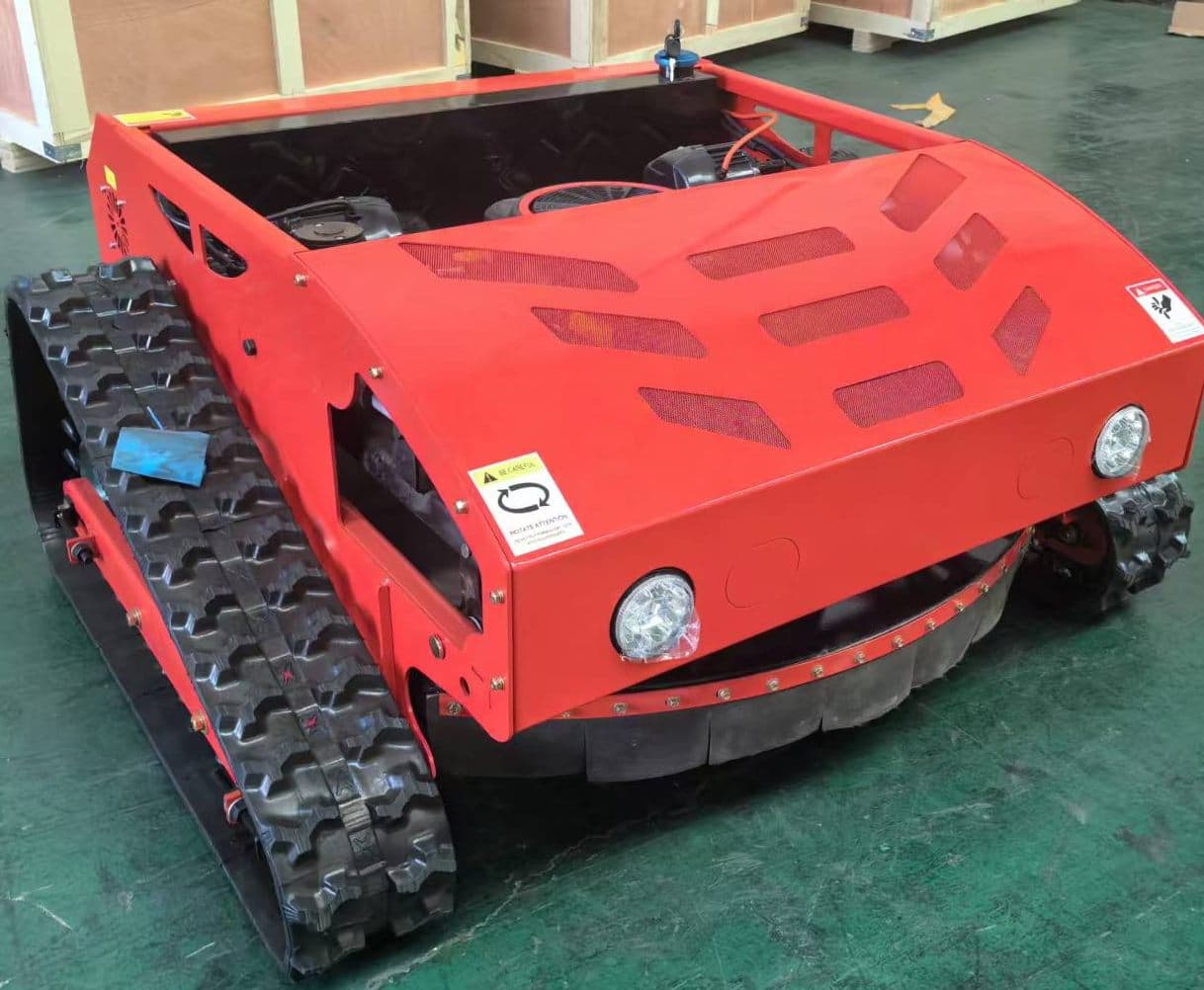

Request a QuoteSH-550B Product Views
Buyer Questions
What is SH-550B suitable for?
It is suitable for slope mowing, vegetation control, estate maintenance and buyers comparing range-extended remote mower options.
What engine options are available?
Engine options include Loncin 196CC, Loncin 224CC, Rato 225CC and Kohler 200CC.
What is the cutting width?
Designed with a 550 mm cutting width.
What should buyers provide before quotation?
Please provide working area, slope angle, vegetation condition, engine preference, destination country and quantity.
How should the source-listed climbing angle be interpreted?
The workbook lists a 55 degree climbing angle under source test/reference conditions. It is not a guaranteed operating limit. Safe use depends on terrain, traction, vegetation, weather, machine configuration and the operator's site assessment.
What remote-control safety functions are listed?
The source workbook lists emergency stop and loss-of-signal protection as standard functions. The exact controller, response behavior, operating range and pre-delivery safety checks should be confirmed for the selected configuration.
Need a confirmed SH-550B configuration?
Tell us your working area, slope condition, vegetation type, required cutting width, quantity and destination. We’ll confirm the suitable configuration before quotation.
