Cutting System
- Cutting Width
- 550 mm
- Cutting Height
- 55 mm / 75 mm
HYBRID / RANGE-EXTENDED REMOTE MOWER
SH-550S Hybrid Range-Extended Remote Control Mower
Range-extended remote mower for managed-ground mowing, turf-style areas and estate maintenance.
Compare the machine against your terrain, vegetation condition, required cutting width and working-area requirements before quotation.
Compare Remote Mowers →
- Cutting Width
- 550 mm
- Bare Machine Weight
- About 102 kg
- Cutting Height
- 55 mm / 75 mm
- Machine Size
- 1000 x 850 x 480 mm
- Remote Control
- 2.4G
Technical Specifications
Machine & Dimensions
- Model
- SH-550S
- Machine Type
- Hybrid range-extended remote control mower
- Machine Size
- 1000 x 850 x 480 mm
- Bare Machine Weight
- About 102 kg
- Standard Tire
- 13*5-6
- Turf Tire
- 13*6.5-6
- Turf Tire Width Note
- Source workbook notes approximately 100 mm added overall width
- Wheelbase
- 662 mm
- Travel Speed
- 0-4 km/h
- Source-Listed Climbing Angle
- 45 degrees under source test/reference conditions; not a guaranteed operating limit
Power System
- Engine Option
- Loncin 196CC; Loncin 224CC, Rato 225CC and Kohler 200CC options available by configuration
- Start Method
- Recoil / electric start for listed Loncin and Rato options; listed Kohler option is recoil start
- Maximum Engine Speed
- 3600 r/min
- Oil Capacity
- 600 ml
- Fuel Consumption
- 0.7 L/h for Loncin 196CC; 0.8 L/h options available by configuration
- Fuel
- 1.3 L / 92# gasoline
- Electrical System
- DC 24V range-extended charging
- Generator
- Brushless 1500W
- Travel Motor
- 350W x 4
Remote Control & Configuration
- Remote Control
- 2.4G
- Source-Listed Remote Distance
- 70-800 m; actual usable range depends on terrain, interference, battery condition and site conditions
- Remote Functions
- Start/stop, travel and turning, engine speed, cutting-height adjustment, cruise, lighting and emergency stop
- Remote-Control Safety
- Emergency stop and loss-of-signal protection are listed as standard; confirm the selected controller and configuration before shipment
- Control System
- Source workbook lists low-voltage functional control, high-power protection control and braking through the travel-control system
- Packaging Size
- 1050 x 900 x 610 mm
- Packed Weight
- About 127 kg
- Configuration Note
- Final configuration and quotation should be confirmed according to working area, terrain, attachment needs and destination market.
MOWING CONDITIONS
Is the SH-550S right for your mowing conditions?
Terrain & Slope
Confirm the working slope, ground firmness, tire selection, traction and moisture. Do not select by a slope-test figure alone.
Vegetation Condition
Describe grass and vegetation conditions on managed ground and estate maintenance routes. Confirm any rough-vegetation requirements before quotation.
Cutting Width & Site Size
Match the 550 mm cutting width to access, site size, mowing frequency and maneuvering space.
Power & Working Pattern
Compare the hybrid / range-extended configuration against the intended working pattern. Confirm the final engine and electrical configuration before quotation.
Not ideal for buyers who need heavy brush cutting, tracked-machine traction or snow clearing.
Typical Applications
Slope Mowing
For evaluation of slope mowing where ground condition, tire selection and traction are checked against the selected configuration.
Vegetation Control
For routine grass and vegetation maintenance on estates and managed ground.
Farm / Estate Maintenance
For buyers evaluating property, farm and estate maintenance where managed-ground conditions and turf-tire requirements are confirmed.
Rental / Professional Mowing
For rental and professional mowing evaluation where site conditions, tires and machine configuration are confirmed for the job.
What to confirm before quotation
- Intended application
- Working area / site size
- Slope and ground condition
- Grass / weed / brush condition
- Required cutting width
- Power / configuration preference
- Quantity
- Destination country / port
- Transport / loading requirements
- Attachment needs if applicable
Packing method, tire/engine option and export quotation should be confirmed after working area, terrain, order quantity and destination market are checked.

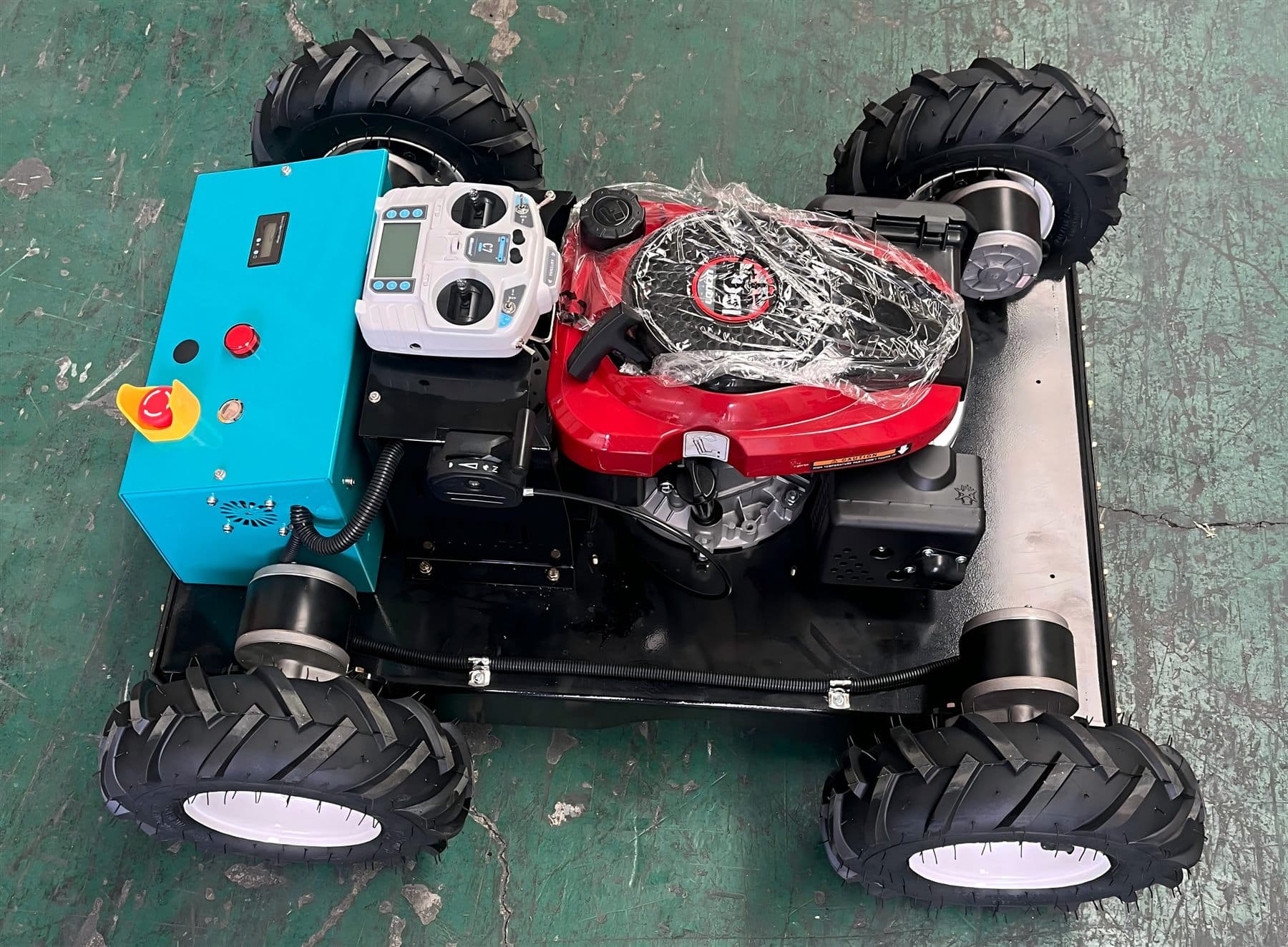

Request a QuoteSH-550S Product Views
Buyer Questions
What is SH-550S suitable for?
It is suitable for managed-ground mowing, estate maintenance and buyers comparing turf-style range-extended remote mower options.
How should the source-listed climbing angle be interpreted?
The source workbook lists a 45 degree climbing angle under test/reference conditions. This is not a guaranteed operating limit. Actual suitability depends on ground conditions, vegetation, weather, tires, machine setup and operating practice.
What tire details are available?
Standard tire 13*5-6 and turf tire 13*6.5-6 options are available for confirmation.
What should buyers provide before quotation?
Please provide site type, slope angle, grass condition, engine preference, destination country and quantity.
What remote-control safety functions are listed?
The source workbook lists emergency stop and loss-of-signal protection as standard functions. The exact controller, response behavior, operating range and pre-delivery safety checks should be confirmed for the selected configuration.
Need a confirmed SH-550S configuration?
Tell us your working area, slope condition, vegetation type, required cutting width, quantity and destination. We’ll confirm the suitable configuration before quotation.
