Load & Performance
- Bucket Capacity
- 0.12 m³
- Climbing Ability
- 25°
- Maximum Breakout Force
- 3.5 kN
- Rated Load
- 200 kg
- Maximum Load
- 300 kg
- Travel Speed
- 0–6 km/h
- Working System Pressure
- 17 bar
- Three-item Work Sum
- 9 s
Compact tracked loader
T390 Tracked Skid Steer Loader
Compact tracked loader for soft-ground loading, site support, landscaping and attachment-based work.
Compare Skid Steer Loaders →
- Operating Weight
- 1070 kg
- Bucket Capacity
- 0.12 m³
- Rated Load
- 200 kg
- Maximum Load
- 300 kg
- Travel Speed
- 0–6 km/h
- Overall Dimensions
- 2244 × 1150 × 1280 mm
Power & Machine Specifications
Machine & Dimensions
- Operating Weight
- 1070 kg
- Bucket Width
- 1150 mm
- Tail Length
- 220 mm
- Ground Clearance
- 226 mm
- Track Contact Length
- 1300 mm
- Overall Dimensions
- 2244 × 1150 × 1280 mm
- Length Including Bucket
- 2244 mm
- Length Excluding Bucket
- 1900 mm
- Track Model
- 180 × 72 × 45
Working Heights
- Max Loading Height
- 1830 mm
- Max Dumping Height
- 1471 mm
- Max Operating Height
- 2425 mm
- Height to Bucket Pin
- 2000 mm
- Max Height Bucket Dump Angle
- 63°
- Minimum Height
- 1250 mm
- Dumping Distance
- 526 mm
Power & Configuration
- Model
- Tracked Skid Steer Loader T390
- Machine Type
- Compact tracked skid steer loader
- Best For
- Site cleaning, soft-ground loading and material handling
- Buyer Fit
- Dealers, rental fleets, contractors and farm/property users
- Ground Conditions
- Soft, uneven or compact job sites
- Attachment Focus
- Bucket and general loading attachments
- Hydraulic Setup
- To be confirmed before quotation
- Packing / Container Plan
- To be confirmed before quotation
Engine or electric configuration should be confirmed before quotation.
Climbing ability is not a guaranteed safe operating slope. Confirm ground conditions and operating limits before use. Confirm the working-system pressure unit, the three-item work-sum measurement and the minimum-height reference before ordering.
Is the T390 right for your work?
The T390 is designed for buyers who need a compact tracked loader for jobsite cleanup, light loading and support work on ground where traction matters. It is positioned for landscaping, farm and estate maintenance, compact construction support, rental fleets and dealers testing compact loader demand.
Ground & Working Space
Tracked chassis for buyers evaluating soft, uneven or compact jobsite conditions.
Material & Load
Use the rated load, Maximum Load, bucket capacity and working dimensions to evaluate the required work.
Not ideal for heavy construction lifting, high-speed road movement or buyers who need large-frame skid steer performance.
Attachments & Configuration
Confirm the selected attachment, hydraulic/configuration requirements and powertrain before quotation.
Soft or uneven ground · Landscaping and estate maintenance · Attachment-based trenching, auger and pallet fork tasks · Dealers testing compact loader demand
What to confirm before quotation
- Intended application
- Ground / working conditions
- Load or material-handling requirements
- Required attachments
- Powertrain preference if applicable
- Quantity
- Destination country / port
- Packing / container requirements
Attachment requirements should be confirmed against the selected machine configuration before ordering.
Attachment matching should be checked against machine model, hydraulic setup and buyer application before quotation.
Loading
Bucket, pallet fork
Ground work
Trencher, auger
Snow / cleaning
Snow blower, sweeper, snow blade
Packing method and container planning should be confirmed based on model, attachments and order quantity. Share destination country, quantity and attachment needs so TL Machinery can support export quotation preparation.
Application and configuration notes
Site cleaning
Supports cleanup work, small material piles and repeated loading tasks around compact jobsites.
Soft-ground support
Tracked undercarriage helps distribute weight where wheeled units may lose traction.
Rental fleet use
A practical compact loader option for contractors needing short-term site support.
Farm and maintenance
Useful for property cleanup, farm support and light material handling tasks.
Soft or uneven ground
Tracked contact helps when site conditions make wheeled machines less predictable.
Repeated bucket work
Useful for cleanup, loading support and moving small material piles around compact sites.
Fleet-ready positioning
Easy to present as a compact loader option for contractors and maintenance users.
Tracked loading support for soft ground and site cleanup
The T390 tracked skid steer loader is built for compact loading, cleanup, material handling and attachment-based work. The tracked chassis helps improve traction on soft or uneven ground, making it suitable for landscaping, farm and estate work, compact construction support, rental fleets and small dealer test orders.
- TRACKED TRACTION
- COMPACT SIZE
- ATTACHMENTS
- DEALER FIT

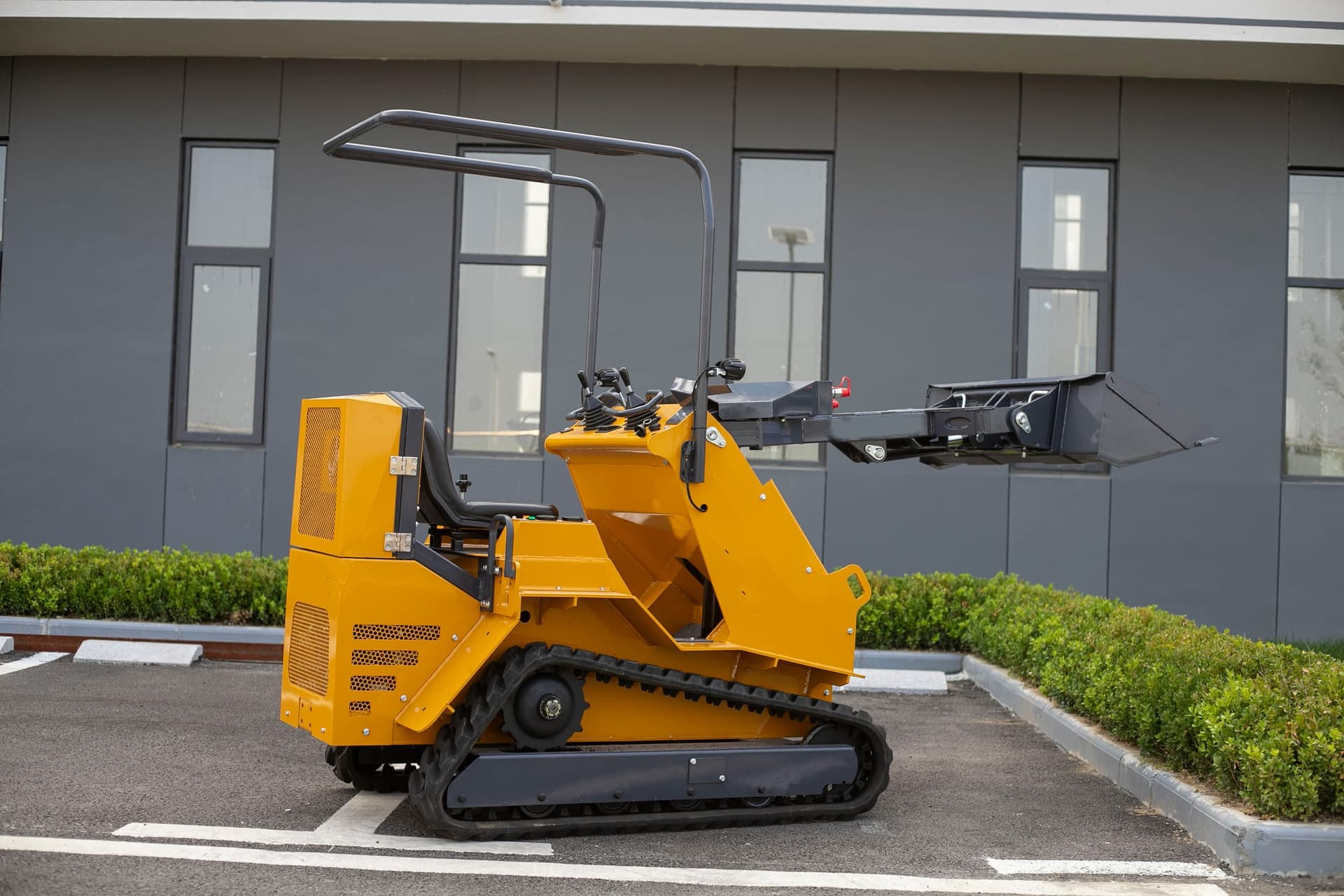

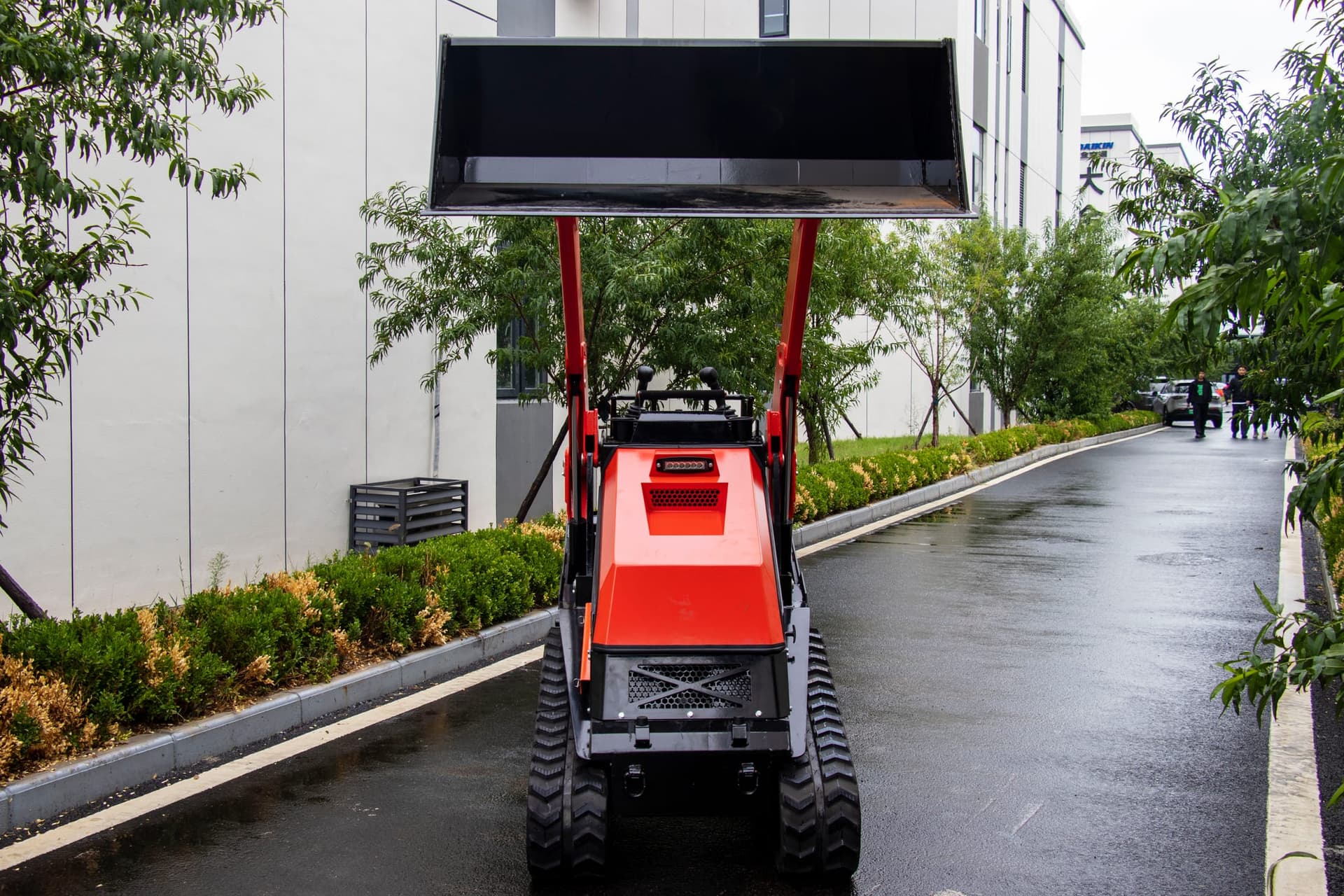

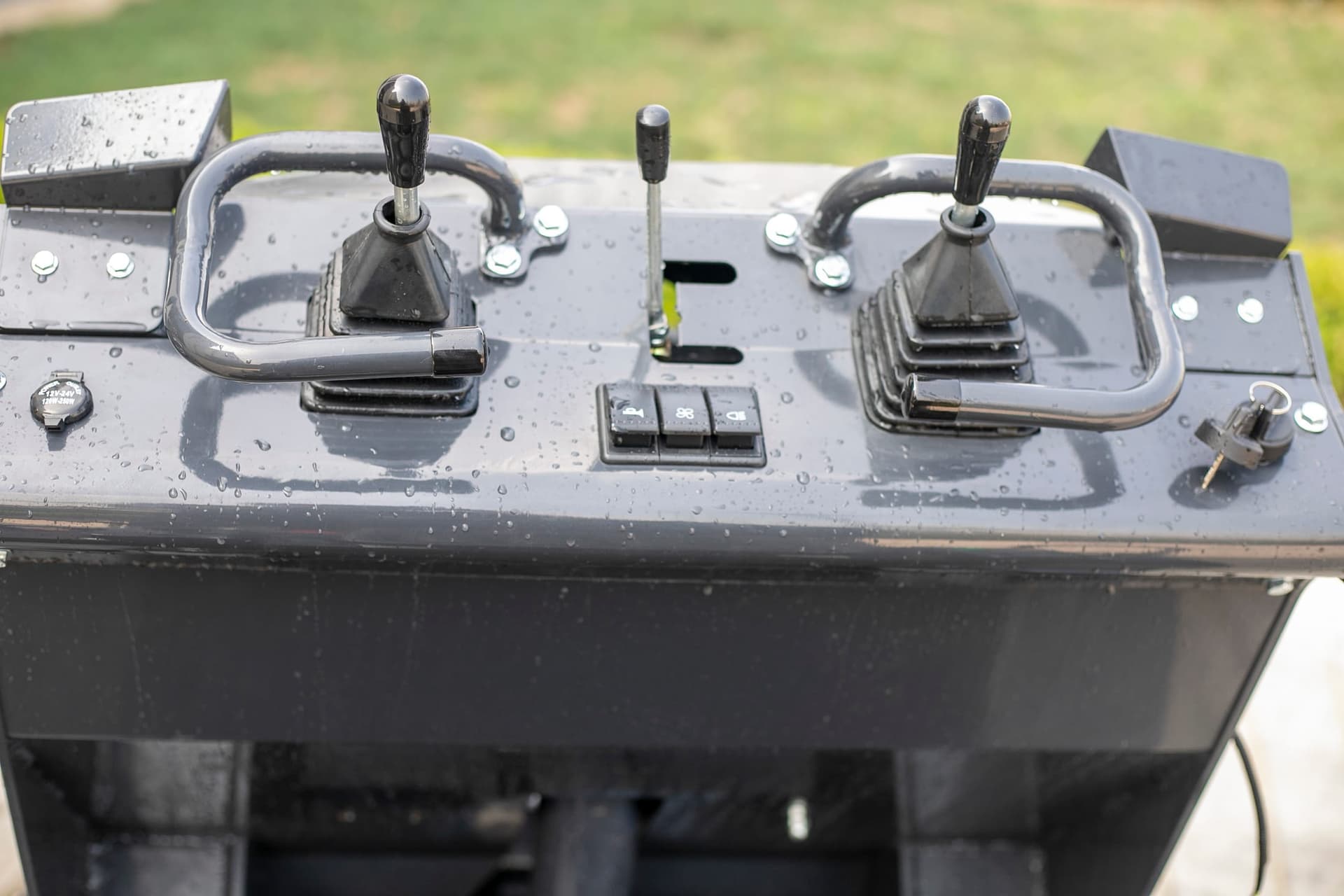

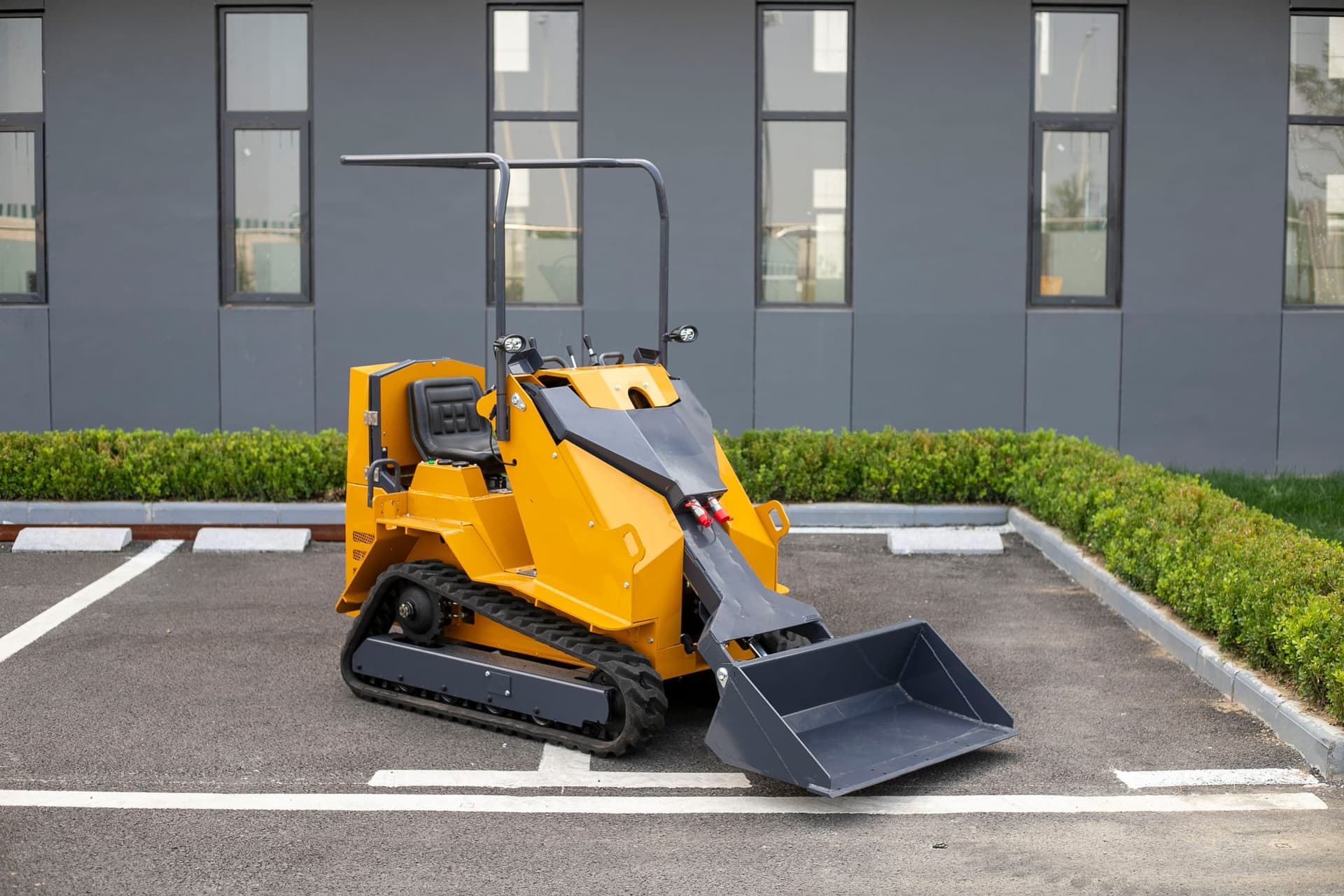

T390 Product Views
Buyer Questions
What applications is T390 suitable for?
The T390 is suitable for landscaping support, farm and estate maintenance, compact construction support, cleanup, light loading and attachment-based jobs where a compact tracked loader is preferred.
Can T390 work with attachments?
Yes. It can be considered for bucket, pallet fork, trencher, auger, snow blower, sweeper and snow blade tasks when compatibility, hydraulic setup and application requirements are confirmed before quotation.
Is T390 suitable for dealers or rental fleets?
Yes. T390 is positioned as a compact tracked loader option for dealers testing compact loader demand and rental fleets serving cleanup, landscaping, farm and compact site support users.
What should buyers provide before quotation?
Please provide application, quantity, destination country, preferred attachments, operating ground conditions and any packing or container planning requirements.
Is T390 suitable for heavy lifting?
T390 is not positioned for heavy construction lifting or large-frame skid steer performance. Buyers with heavier lifting needs should confirm a larger model before quotation.
Request a T390 Quote Based on Your Site Conditions
Share application, quantity, destination country and attachment needs so TL Machinery can help buyers choose a suitable setup and prepare a quotation.
